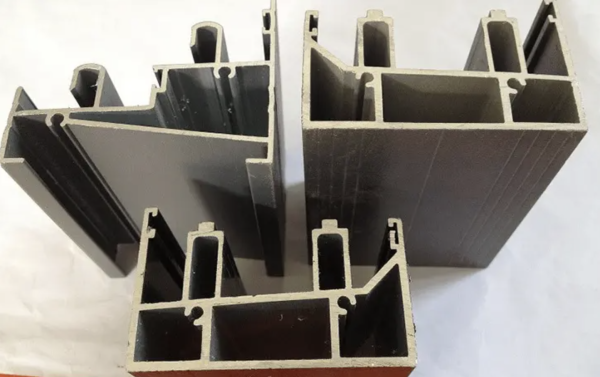

Aluminum Sliding Door Frame Extrusions
Enhance the aesthetics and functionalities of your spaces with the award-winning Aluminum Sliding Door Frames crafted from the finest 6000-series extruded aluminum alloys. These robust extrusions are intended for use where a long life, ruggedness, and outstanding performance are required. Aluminum provides a decorative stylised finish that offers a stylish bright white, polished appearance suitable for all residential and commercial applications.
| Item Type | Aluminum Door Sliding Frame |
| Temper | T3-T6 usually T5 |
| Delivery time& Lead time | 21-30 days after sample confirmed & down payment |
| Door Frame Color | Silver, champagne, Bronze, Golden, Black, White, Gray, Aluminum mill finish, Matt Black or Matt Gray, Sand coating or Customized (photo display will perfect) |
| Fabrication | We can provided Door Frame design, aluminum extrusion, Cutting, Heat Treatment， Welding, Assembling window |
| Shape | Customized Please communicate with our personnel about the shape of the aluminum windows and doors you want to manufacture. |
| Quality Control | ISO 9001 |
| Door Finishing | Anodizing, Mill finish, Electroplating, Polishing, Powder coating |
| Aluminum Alloy | 6000 series （common aluminum alloy 6063，6061 or others |
Our aluminum sliding door frames offer superior performance. Manufactured with over 10 years of extruding experience, these frames are built to tight tolerances, and every time you install them they will be trouble-free. If you are building a new house or renovating an existing one, our frames give you a beautiful, long-lasting solution.
Hugh Aluminum makes frames in various sizes, thicknesses, and configurations to fit your unique project requirements. We can deliver off-the-shelf square or angled profiles as well as custom profile configurations to your exact specifications. We also provide surface finishes, such as anodizing, powder coating, and brushed treatments, to make them look the way you want.
Key Components
Top and Bottom Tracks
The top and bottom tracks are central to guiding door panels smoothly. Typically, the bottom track bears the door’s weight, ensuring stability and easy operation. Conversely, the top track aligns the door, preventing any wobbling or misalignment. Available in sizes ranging from 80mm to 120mm in width and 30mm to 50mm in depth, these tracks are adaptable for various configurations.
Door Frame (Outer Frame)
The outer frame acts as the backbone of the sliding door system. It secures the tracks and provides essential structural support. A robust frame ensures both durability and longevity. Outer frame dimensions commonly range from 100mm to 150mm in width and 40mm to 75mm in depth. Thus, they accommodate diverse design requirements and ensure a perfect fit.
Sliding Rails/Rollers
Sliding rails or rollers play a key role in ensuring effortless door movement. Attached to the door panels, these rollers glide along the tracks. This ensures easy and quiet operation. High-quality materials and precise engineering allow for seamless functionality, offering a user-friendly experience.
Interlock Profile
The interlocking profile is placed between sliding door panels to create a tight seal. This ensures a smooth transition between panels and maintains system integrity. By preventing drafts and enhancing security, the interlocking profile improves both functionality and aesthetic appeal. It delivers a clean, seamless look as a result.
Glass or Panel Inserts
Aluminum sliding door frames support various inserts, such as glass or aluminum panels. Depending on your aesthetic and functional needs, opt for clear, frosted, or tinted glass panels to achieve a stylish look. Alternatively, use aluminum panels for an industrial or contemporary feel. These inserts fit easily within the frame, offering design flexibility and customization.
The Standard Sizes
| Components | Common Frame Width | Common Frame Depth | Wall Thickness |
|---|---|---|---|
| Outer Frame (Top Track) | 60mm – 150mm | 30mm – 75mm | 1.2mm – 2.2mm |
| Outer Frame (Bottom Track) | 60mm – 150mm | 30mm – 85mm | 1.4mm – 2.0mm |
| Door Frame (Side Rails) | 80mm – 120mm | 30mm – 75mm | 1.5mm – 2.0mm |
| Sliding Panel Thickness | 20mm – 50mm | 40mm – 100mm | 1.4mm – 2.0mm |
| Interlock Profile | 40mm – 75mm | 30mm – 50mm | 2.0mm – 2.5mm |
| Glass Panel Thickness | Depending on customers’ needs | Depending on customers’ needs | Depending on customers’ needs |
Aluminum Door Frames Drawing
How to Assemble Aluminum Door Frames?
Get the Best Price Quotation
Transform your vision into reality with our premium Aluminum Sliding Door Frames. Contact us today to discuss your project and let our team of experts help you find the perfect solution.
