Extruded Aluminum T Slot Framing
| Item Type | T-Slot Aluminum extrusions |
| Material: aluminum alloy | 6xxxseries（common aluminum alloy 6063, 6061） |
| Size of aluminum T-slot profile | please see Below Table |
| Color and Finish | Common colors: golden and gray, black and white, silver and champagne. Customized color we have hundreds option of colors to offer to the customers |
| Fabrication We offer | T-slot profile design, Aluminum Extruding, Cutting, Drilling, Welding, CNC machining, Punching, polishing |
| Aluminum Finishing | Anodizing, Mill finish, Electroplating, Polishing, Powder coating， wood grain, blasting, hard coating, PVDF |
| OEM&ODM | Available |
| Quality Control | ISO 9001 certification |
| Mini Order Quantities | At least 300 kg. Payment methods can be discussed with our sales staff by e-mail. |

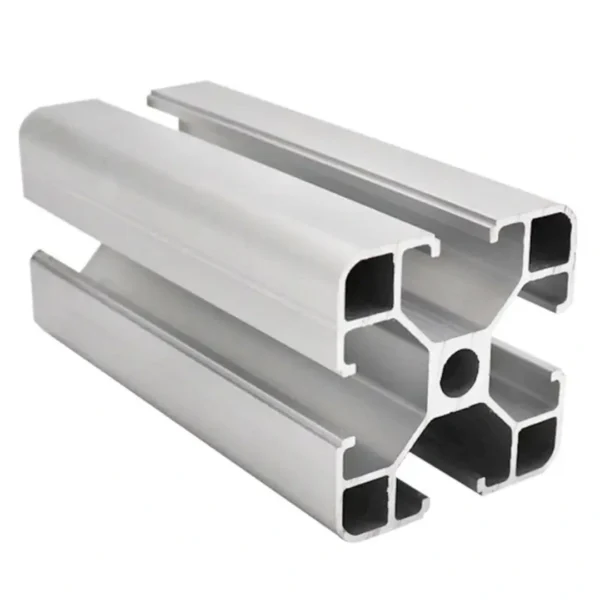

The T-slot aluminum profile is an aluminum alloy extrusion with a T-shaped groove. It serves as a framework component and connector.
The Main Features
Modular Design: This profile is engineered for modular structures, making it incredibly easy to create custom frameworks. Adjusting or expanding your setup? Piece of cake.

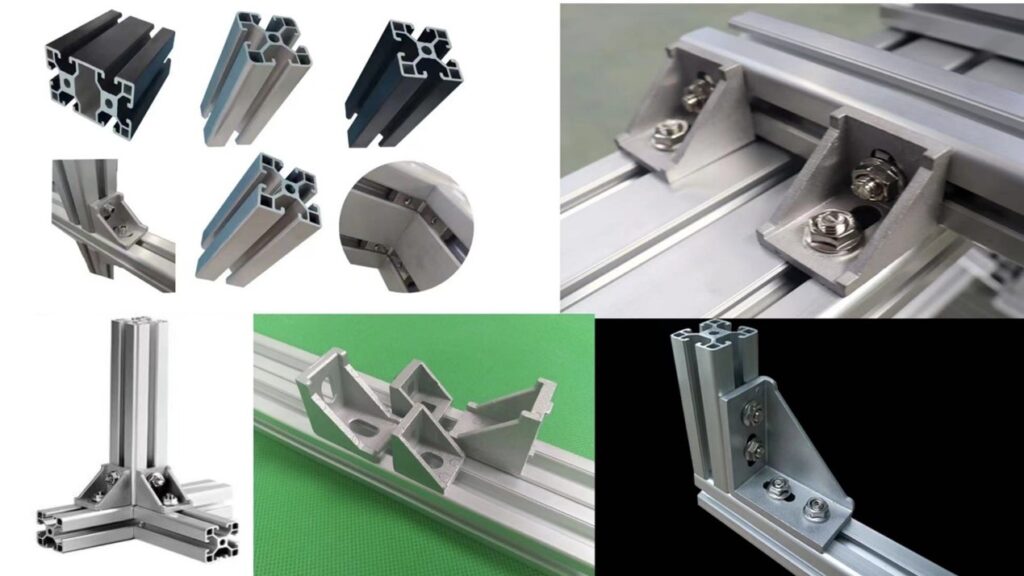

Diverse Connection System: The T-slots allow for many fittings and connectors, enabling assembly in various configurations like corners, crosses, and other intricate shapes.
High Strength-to-Weight Ratio: Made from aluminum alloys (usually 6061 or 6063), these profiles offer excellent strength while remaining lightweight. This feature is vital for reducing overall system weight without compromising structural integrity.
Corrosion Resistance: The natural corrosion resistance of aluminum ensures that T-slot profiles can withstand harsh environments, making them suitable for both indoor and outdoor applications.
Easy Assembly: You can put these profiles together using simple hand tools—no need for specialized skills or equipment. This ease of use speeds up project timelines and cuts labor costs.
Customizable and DIY-Friendly: T-slot profiles can be cut to various lengths, allowing customization to meet specific project needs. Standard sizes ensure compatibility across different systems. They’re so easy to assemble that they support a wide range of DIY and custom projects.
Applications of T-Slot Profiles
- Machine Frames
- Workbenches and Assembly Lines
- Protective and Safety Fences
- Conveyor Systems
- Displays and Exhibitions
Whether you’re building a sturdy machine frame or setting up a display for a trade show, T-slot profiles make your life easier. Think of them as the Swiss Army knife of structural components, ready to adapt to whatever you throw at them. Easy to use, versatile, and strong—what more could you ask for?
Feel free to dive into the endless possibilities these aluminum T-slot profiles offer. They’re not just parts; they’re the building blocks of your next great project.
Hugh’s T Slot Profile Sizes
| Type of T-slot profiles | Outer Width (mm) | Outer Height (mm) | Inner Width (mm) | Slot Width (mm) | Slot Depth (mm) | Material Thickness (mm) |
| 2020 aluminum extrusion | 20 | 20 | 8 | 6 | 10 | 1.5 |
| 3030 T-slot profile | 30 | 30 | 8 | 8 | 12 | 1.5 |
| 40×40 T-slot profile | 40 | 40 | 10 | 10 | 14 | 2 |
| 45×45 T-slot profile | 45 | 45 | 10 | 10 | 14 | 2 |
| 60×60 T-slot profile | 60 | 60 | 12 | 12 | 16 | 2.5 |
| 80×80 T-slot profile | 80 | 80 | 12 | 12 | 20 | 3 |
| 90×90 T-slot profile | 90 | 90 | 14 | 14 | 20 | 3 |
| 20×40 T-slot profile | 20 | 40 | 8 | 6 | 10 | 1.5 |
| Customize T-slot profile | Customize | Customize | Customize | Customize | Customize | Customize |
Hugh’s T-Slot Extrusions Process
