Types of Aluminum Door Frame Profiles You Must Know
Aluminum door frame profile types are very diverse. How to choose the type you want?

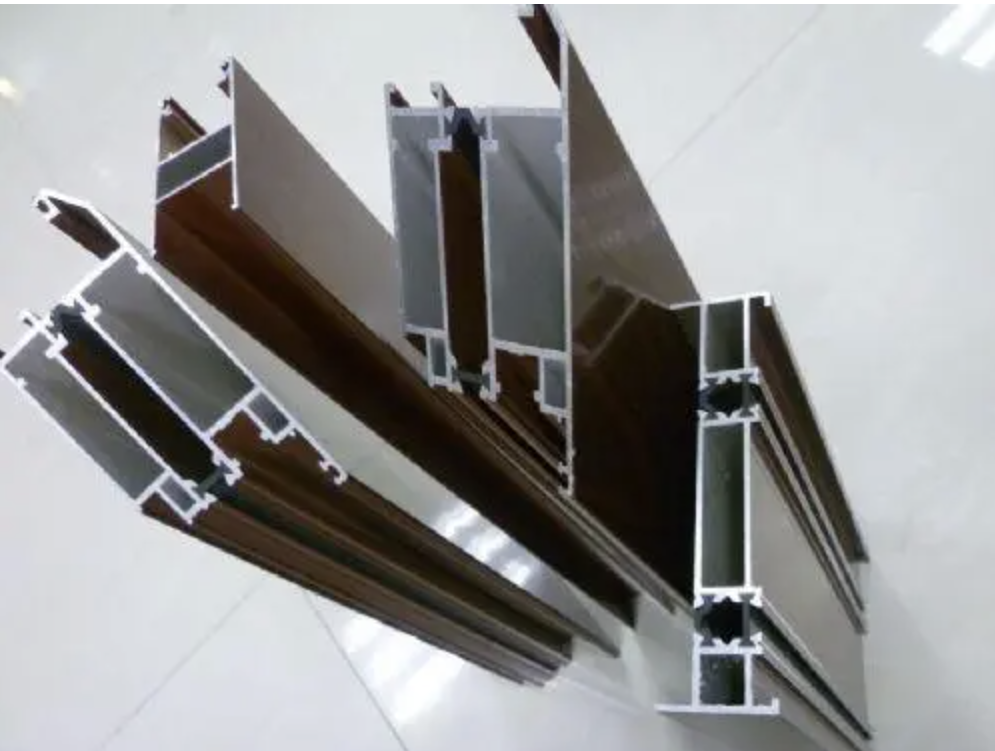

What is an aluminum door frame profile?
An aluminum door frame profile is the shape and design of the frame that surrounds an aluminum door. It is the cross-sectional shape of the frame made from extruded aluminum bars. These profiles come in various shapes and sizes to fit different types of doors.
It can also be customized for specific applications. Aluminum door frame profiles can include reinforcements, insulation strips, and gasket channels to enhance the performance of the frame.
Door frame profiles are made through an extrusion process. The profiles are designed for optimum resistance to warping and corrosion and provide a tight seal around the door.
Door Profile series classification:
Aluminum door frame profiles are mainly divided into several series according to the size of the section height (door frame thickness).
Such as 40 series, 45 series, 50 series, 55 series, 60 series, 65 series, 70 series, 80 series, 90 series, 100 series and so on. These series refer to the height dimension of the profile section, which is the thickness of the door or window frame.
The series used vary for different types of windows and doors：
- Aluminum profiles for sliding doors are commonly used in sizes such as 70 series and 90 series.
- Aluminum profiles for swinging doors are commonly used in specifications such as 50 series, 55 series and 70 series.
- Aluminum profiles for spring doors are commonly used in specifications such as 70 series and 100 series.
Profile cross-section shape classification:
Aluminum door profiles are based on the cross-sectional shape. Among them, hollow profiles are used in larger quantities. Such as T-type, L-type, U-type, H-type. According to the safety requirements of installation, it can be divided into single or double.
Characteristics of aluminum door frame:
Aluminum door frame profiles have the advantages of good wind pressure resistance and non-combustion. In addition, it has better heat insulation and sound insulation, which can provide a good living environment.
Door frame & Door size:
Its basic doorway height has 2100, 2400, 2700mm, etc., and the basic doorway width has 800, 900, 1200, 1500, 1800mm, etc.
The following tables show the regular dimensions of different types of aluminum door frames and door sizes：
| Aluminum Door Frame Type | Common Aluminum Frame Size (Width x Height mm) | Standard Aluminum Door Size (Width x Height mm) | Application |
| Single Casement Door | 70×35, 80×40, 90×45 | 700×2000, 800×2100, 900×2200 | Interior doors, office doors, shop entrances |
| Double Casement Door | 70×40, 80×50, 100×60 | 1200×2100, 1600×2200, 1800×2400 | Conference room doors, residential entrances, balcony doors |
| Single Sliding Door | 70×30, 80×35, 90×40 | 700×2000, 800×2100, 900×2200 | Bedroom doors, kitchen doors, bathroom doors |
| Double Sliding Door | 70×35, 80×40, 100×50 | 1200×2100, 1500×2200, 1800×2400 | Living room doors, balcony doors, patio doors |
| Folding Door | 60×25, 70×30, 80×35 | 1800×2100, 2000×2200, 2400×2400 | Garden doors, dividers for open spaces |
| Suspended Sliding Door | 80×40, 100×45, 120×50 | 1500×2100, 1800×2200, 2400×2400 | Spacious living rooms, office partitions, showroom entrances |
| Heavy Sliding Door | 90×50, 100×55, 120×60 | 2000×2400, 2400×2600, 3000×3000 | Villa doors, commercial building entrances, large balcony doors |
For the ground spring door, the basic door opening height has 2100, 2400, 2700, 3000, 3300mm, etc., and the basic door opening width has 900, 1000, 1500, 1800, 2400, 3000, 3300, 3600mm, etc.
Aluminum door frame profile other type:
Single channel profiles
The single groove profile on an aluminum door refers to the construction of the door frame. A groove is a notch cut into the edge of the door frame that allows the door panel to sit flush with the frame. Single groove means that only one groove is cut into the door frame, rather than double or triple groove.
Corner Sliding Door Profiles:
Structure: These profiles enable sliding doors that open at a corner without a fixed post, creating an unobstructed, seamless transition between indoor and outdoor spaces.
Components: Includes corner profiles, tracks, and sashes designed to align and slide smoothly at the corner.
Application: Often used in luxury homes and villas with expansive views.
Advantages: Maximizes the opening space, allows for elegant design solutions, and provides a continuous indoor-outdoor connection.
casement door aluminum profile:
Casement door profiles use a hinge mechanism that allows the door to swing open inward or outward.
This type of door frame includes a frame, sash, and hinges. The frame provides structural support while the sash holds the glass or panel in place. Hinges attach the door to the frame. It provides a strong weather seal, offers good thermal and acoustic insulation, and is available in single and double door configurations.
Applications: Commonly used in residential, office and commercial buildings.
Sliding Door Profiles:
Structure: Sliding door profiles consist of rails and sashes that allow the door to slide horizontally. Its components includes top and bottom tracks, sashes, rollers, and interlocks. The rollers enable smooth sliding motion, while interlocks ensure secure closure. This type of aluminum door frame widely used in patios, balconies, and spaces with limited room for swing doors.
Advantages: Space-saving, easy to operate, low maintenance, and can accommodate large glass panels for a modern aesthetic.
Double Grooved Aluminum Door Frames
A double groove on an aluminum door is the shape of the door edge where the door panel fits into the door frame. Double groove refers to the two grooves or notches cut into the edge of the door panel that allow it to fit securely into the door frame and seal tightly when closed.
Pivot Aluminum Door Frame Profiles:
Structure: Pivot doors rotate on a pivot hinge mounted on the top and bottom rather than the side, creating a smooth, central axis movement.
Components: Includes pivot hinges, a central axis, and the door frame.
Application: Often used in entrance doors for residential or commercial buildings with a modern design.
Its features: Provides a unique design, allows for large and heavy door panels, and offers smooth operation with a distinctive appearance.
Lift-and-Slide Aluminum Door Profiles:
Structure: Lift-and-slide profiles feature a mechanism that lifts the door off its tracks for easy sliding.
Components: Includes a lift-and-slide mechanism, sashes, frames, and tracks.
Application: Common in high-end residential and commercial buildings, especially for large panoramic views.
Advantages: Offers excellent insulation, supports large and heavy glass panels, and provides a tight seal when closed.
Insulated aluminum door frames:
This door frame profile is hollow in the center and can be filled with plastic strips or insulation. The door frame has an insulating layer between the interior and exterior of the door frame to improve insulation and energy efficiency. This type of door frame is suitable for tropical or hot areas and can be installed to reduce the interior temperature.
To summarize
Distinguishing aluminum door frame profiles can be done by the cross sectional shape of the aluminum door frame, the size of the door frame and the size of the aluminum profile. These things can help us to differentiate between different types of aluminum door frames.
Here are professional manufacturers of aluminum door frames:
Hugh Aluminum is an aluminum extrusion manufacturer based in China. We manufacture aluminum profile products including aluminum roofings，aluminum heat sink aluminum T-slot profile, aluminum deck, aluminum fence, aluminum doors and windows，aluminum channel，aluminum tube. We offer huge quantity of aluminum building materials and factory price.
If you looking for best aluminum door frame supplier or wanna bulk purchase aluminum door profile.
Please contact us!
Frequently Asked Questions and Answers:
What is the typical thickness of an aluminum door frame?
Aluminum door frames typically have wall thicknesses between 1.2mm and 2.0mm, depending on the purpose of the door, its size, and the needs of the customer.Hugh Aluminum manufactures aluminum door frames in thicknesses to meet the needs of any project you may have!
What are the standard sizes of your aluminum door frames?
We offer a wide range of standard sizes, and we are able to accept all the sizes indicated in the table above for production. Multiple sizes are available for different door types (i.e. swinging doors, sliding doors, etc.). We can also customize them to meet your needs.
